• CW2546 0.100"(2.54mm)Pitch Single Row Headers -Wafer
    CW2546 0.100"(2.54mm)Pitch Single Row Headers -Wafer

    CW2546 0.100"(2.54mm)Pitch Single Row Headers -Wafer

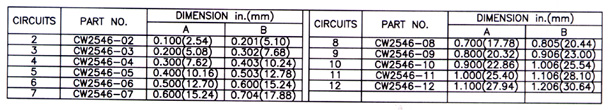

    CW2546 Series
    * Ploes : 2-12
    * Material : Insulator : NYLON UL 94V-2
      Color : Brown
    * Contact : 0.64mm(.025") Square Pin,Brass,
      Tin Plated 60u"
    * Mates With CH251 Series Housing
    Specifications
    * Current Rating : 3A AC, DC
    * Voltage Rating : 250V AC, DC
    * Temperature Range : -25℃ ~ +85℃
    * Insulation Resistance : 1,000MΩ Min.
    * Withstand Voltage : 1,000 AC / Minute
    * Applicable PC Board Thickness :
          .063"(1.6mm)

    CW2546
