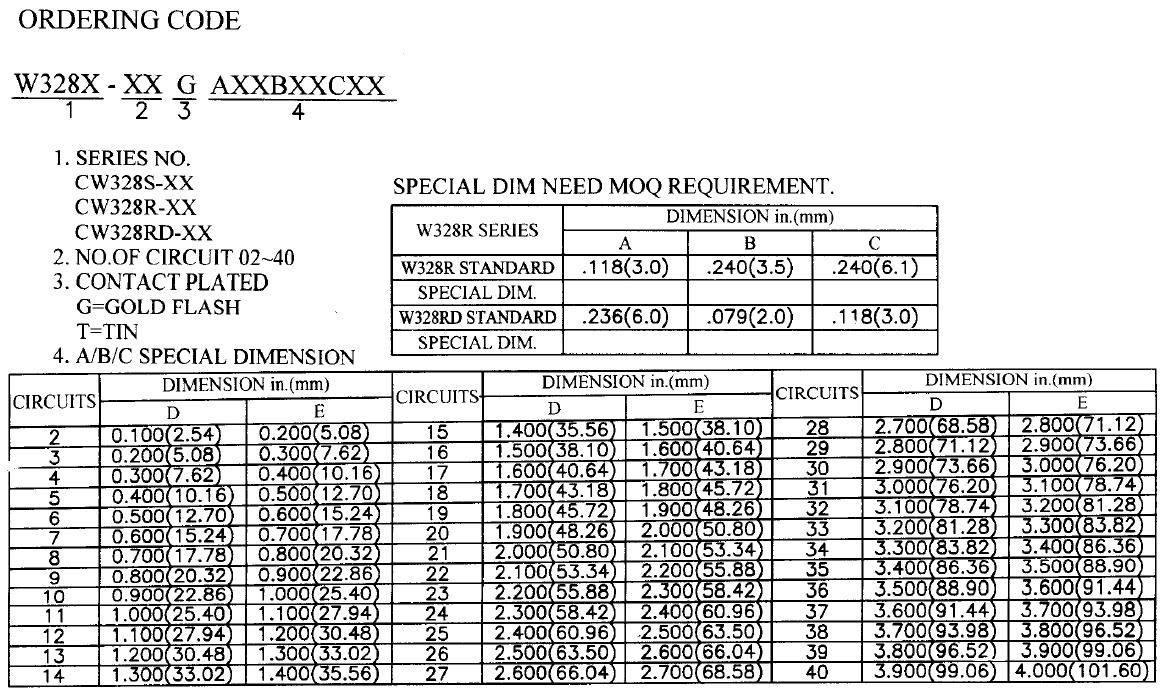

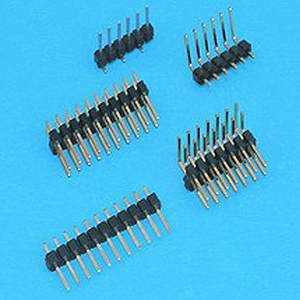

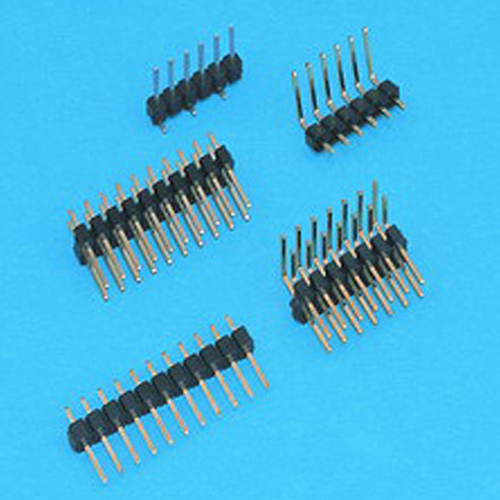

Our Products Board to Board Connector 2.54mm pitch Board to Board W328R 0.100"(2.54mm) Pitch Single Row - Board to Board Connector W328 Series Poles: 2-40 Material: Insulator: PBTP UL 94V-1 Black Contact: 0.50mm(0.25") square pin, brass, gold plated Gold Flash Mates with CH328 series housing Specifications Current rating: 3A AC, DC Voltage rating: 250V AC, DC Temperature range: -25℃ ~ +85℃ Insulation resistance: 1,000MΩ min. Withstand voltage: 500V AC/minute Applicable PC board thickness: 0.063" (1.6mm) Unspecified tolerance: ±0.25 W328 Order / Inquiry Information Please select Items below and click See Catelog for Inquiry. SERIES NO. W328R W328RD NO.OF CIRCUIT 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 CONTACT PLATING G=GOLD FLASH See Catalog Please write down your comment on this product, and click Add to Inquiry List for Inquiry Add to Inquiry List Review Inquiry List Back
